Side Channel Blower
Accessories
Inlet Vacuum Filter 2BX4 082 Ordering Data and Performance Data
Model: 2BX4 082
Inlet Vacuum Filter 2BX4 082

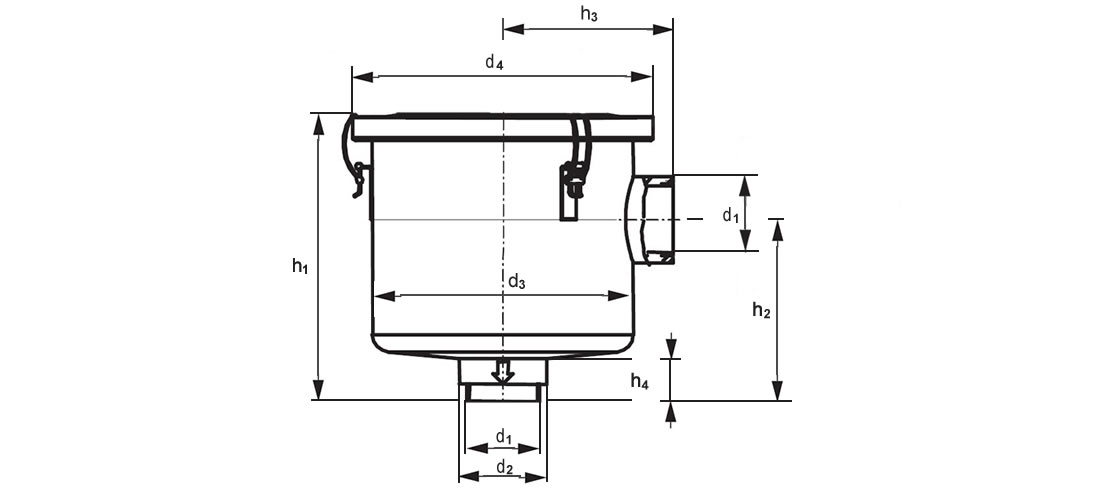

Dimension for Inlet Vacuum Filter
| Type | material | FPT Inlet & Outlet | d1 | d2 | d3 | d4 | h1 | h2 | h3 | h4 | Rated Flow (m³/min) | Approx.wt.(kg) |
| 2BX4 082 | with polyester element | 2" | G 2 | 68 | 194 | 217 | 256 | 129 | 110 | 13 | 5.0 | 4.3 |
